Transponders and keys

Transponders and keys as identification media

eLOCK transponders are the identification media for the eLOCK locking system. When they are programmed with system data and locking authorisations (in the eLOCK eLOCK eXpert and eLOCK EM Access on Card systems), they constitute one of the elements for checking access rights and operating the locking system.

Different installations have different requirements when it comes to the operation of a locking system.
If a traditional approach to opening and closing doors is required, in an installation at a retirement home for example, then the use of eLOCK EM transponder keys is recommended.
If on the other hand, contactless identification is preferred, transponders are available as key fobs or cards.

eLOCK transponders are passive transponders. They don't require batteries.

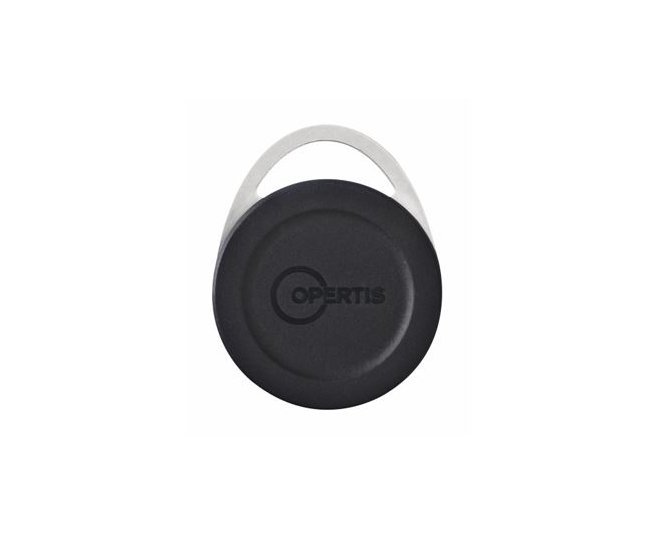

Key fobs

Key fob with integrated RFID transponders

Key fobs with integrated RFID EM4050 or MIFARE DESFire 8K transponders. An additional third-party transponder can be integrated for third-party systems, on request.

eLOCK eXpert | eLOCK eXpress | eLOCK EM

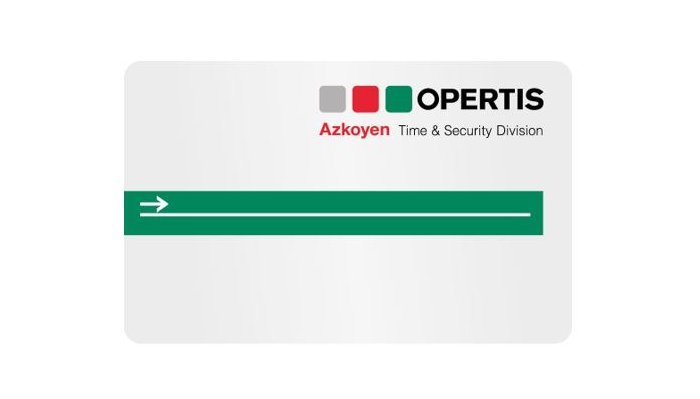

Transponder cards

Transponder card with Opertis logo

Key fobs with integrated RFID EM4050 or MIFARE DESFire 8K transponders. An additional third-party transponder can be integrated for third-party systems.

eLOCK eXpert | eLOCK eXpress | eLOCK EM

Fire service transponder

Key fob with integrated RFID transponder, orange with fire department symbol

Key fobs with integrated  RFID MIFARE DESFire 8K transponders for activating the fire service mode. In fire service mode, a door is set to the “Continuously open” mode, to guarantee the emergency services unhindered access in the case of an emergency.

eLOCK eXpert | eLOCK eXpress

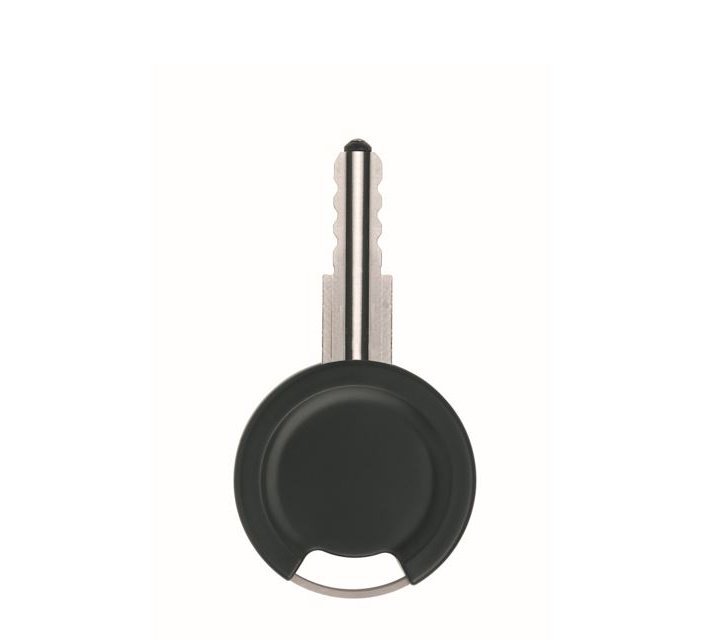

Key with integrated RFID EM4050 transponder

Has to be deployed for use with eLOCK locking cylinders. Identification and operation results from inserting the key into the key way and turning it. Simply hold it in front of the lock’s antenna for contactless identification at all eLOCK EM door components.

eLOCK EM
